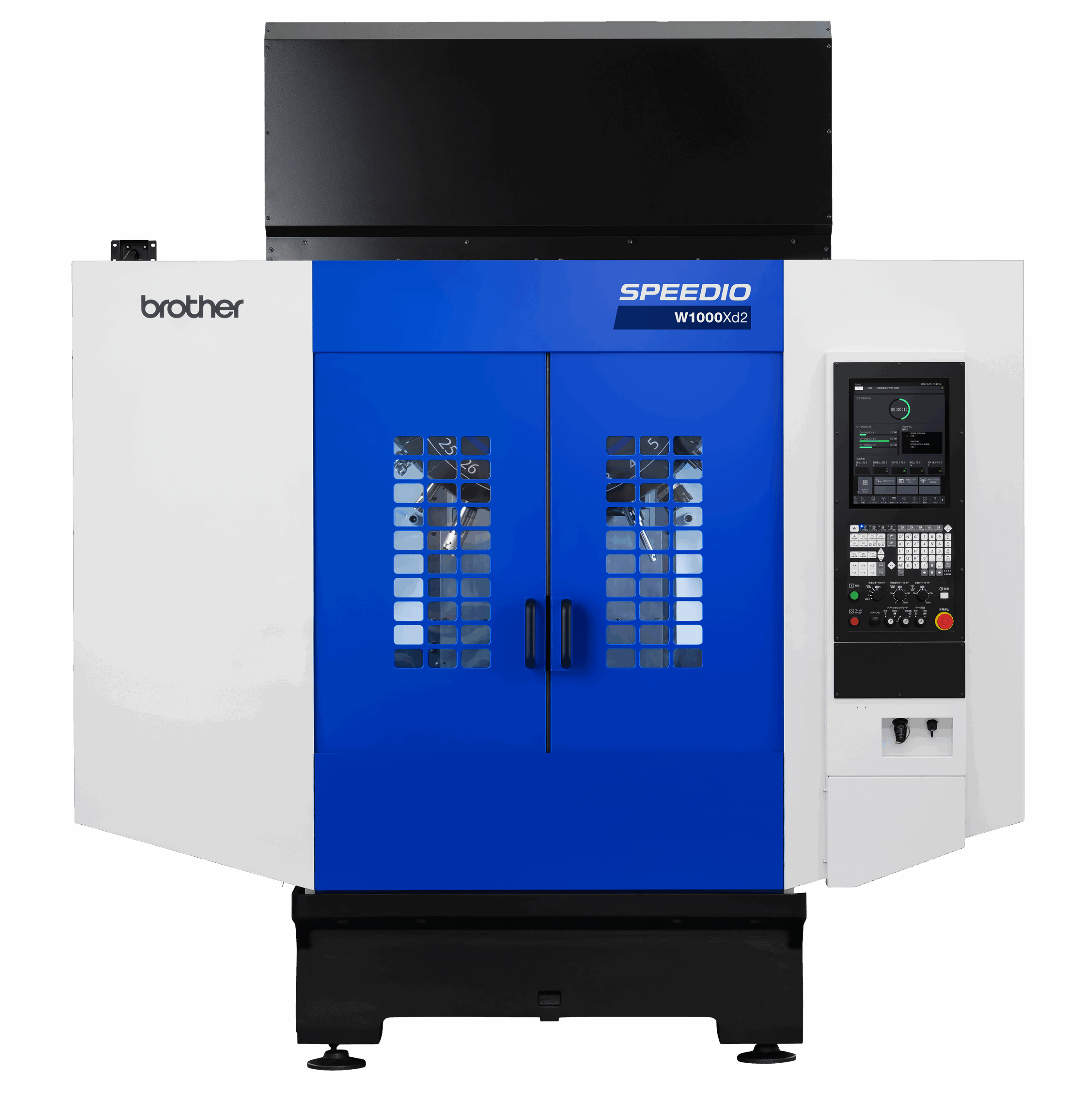

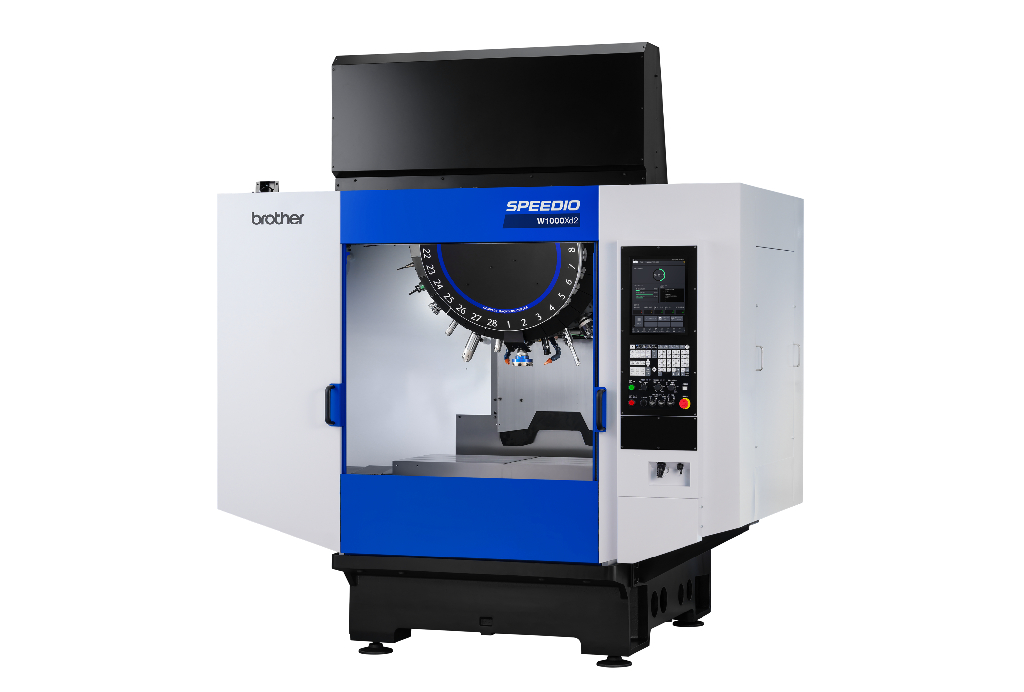

Designed for manufacturers in India working with larger components—such as mould bases, battery enclosures, aerospace brackets, and EV subframes—it features an expansive 1,000 mm X-axis stroke, with Y/Z travel of 500/380 mm.
The machine supports up to 28 tools and features high-speed spindle options up to 16,000 min⁻¹, coolant-through-spindle capabilities, and robust rigidity for heavy-duty milling. The 50 m/min rapid traverse and optimized acceleration/deceleration patterns ensure short cycle times even for large parts.
With a BT30 spindle interface and Brother’s compact, low-energy design, the W1000xd2 fits Indian factory floors where space, speed, and power savings are critical. Whether for die-mould shops, EV chassis machining, or general production lines, the W1000xd2 offers the ideal combination of size, speed, and precision.
| Items | W1000Xd2 / W1000Xd2 RD | ||
|---|---|---|---|
| CNC unit | CNC-D00 | ||
| Travels | |||
| X axis (mm) | 1,000 | ||
| Y axis (mm) | 500 | ||
| Z axis (mm) | 380 | ||
| Distance between table top and spindle nose end (mm) | 100–530 | ||
| Table | |||
| Work area size (mm) | 1,100 × 500 | ||
| Max. loading capacity (uniform load) | 300 [500※1] | ||
| Spindle | |||
| Spindle speed (min⁻¹) | 12,000min⁻¹ specifications: 1~12,000, 10,000min⁻¹ high-torque specifications (optional):1~10,000, 16,000min⁻¹ specifications (optional): 1~16,000 |
||
| Speed during tapping (min⁻¹) | MAX. 6,000 | ||
| Tapered hole | 7/24 tapered No.30 | ||
| BT dual contact spindle (BIG-PLUS) | Optional | ||
| Coolant through spindle (CTS) | Optional | ||
| Feed rate | |||
| Rapid traverse rate (XYZ) (m/min) | 50 × 50 × 56 | ||
| Cutting feed rate (mm/min) | X, Y, Z: 1–30,000 mm/min ※2 | ||
| ATC unit | |||
| Tool shank type | MAS-BT30 | ||
| Pull stud type ※3 | MAS-P30T-2 | ||
| Tool storage capacity (pcs) | 14 / 21 / 28 pcs | ||
| Max. tool length (mm) | 250 | ||
| Max. tool diameter (mm) | ø110 | ||
| Max. tool weight (kg/lb) ※4 | 3.0 [4.0※5] / tool, (TOTAL TOOL WEIGHT: 25 for 14 tools, 35 for 21 or 28 tools) | ||
| Tool selection method | Random shortcut method | ||
| *Tool change time 6 | |||
| Tool To Tool | 0.6 / 0.7 (14 or 21 tools / 28 tools) | ||
| Chip To Chip | 1.3 / 1.4 (14 or 21 tools / 28 tools) | ||
| Electric motor | |||
| Main spindle motor (10 min/continuous) *7 | 12,000min⁻¹ specifications: 10.1/7.0, 10,000min⁻¹ high-torque specifications (optional): 12.8/9.2, 16,000min⁻¹ specifications (optional): 7.4/5.1 |
||
| Axis feed motor | X,Y axis: 1.0 Z axis: 2.0 | ||
| Power source | |||
| Power supply | AC 200 to 230 V ±10%, 3-phase, 50/60 Hz ±2% | ||
| Power capacity (continuous) | 12,000 min⁻¹: 9.5 , 10,000 min⁻¹ high-torque: 10.4 | ||
| Air supply – Regular air pressure | 0.4–0.6 (recommended: 0.5 ) ※8 | ||
| Air supply – Required flow | 45 | ||
| Machine dimensions | |||
| Height | 2633 | ||
| Required floor space *11 (with control unit door open) | 2,410 × 2,233 | ||
| Weight | 3350 | ||
| *Accuracy 9 | Accuracy of bidirectional axis positioning (ISO230-2:1988) (mm) | 0.006~0.020 | |
| Repeatability of bidirectional axis positioning (ISO230-2:2014) (mm) | Less than 0.004 mm | ||
| Front door | 2 doors | ||
| Standard accessories | Instruction Manual (DVD 1 set), leveling bolts (4 pcs.), leveling plate (4 pcs.)Parameter setting needs to be changed. (Table travel time is changed.) | ||
