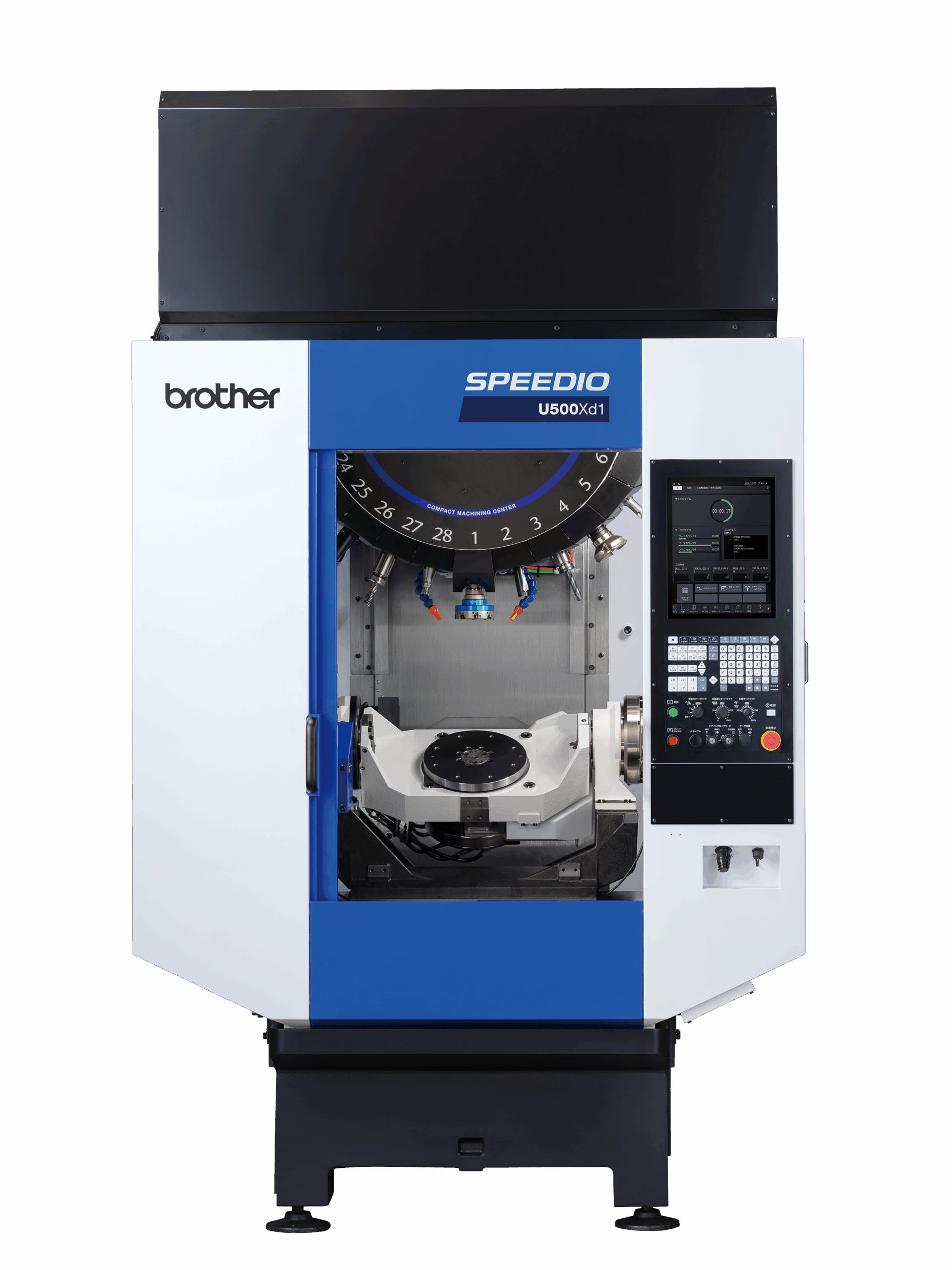

A compact 5 axis machining center, it features X/Y/Z travels of 500/450/380 mm and a robust tilting rotary table (ø500 mm, 100 kg capacity). Its most distinctive feature is the optional 100 tool magazine using a turret and dual tool stockers—making it an ideal choice for operations needing frequent tool changes without setup delay.
Equipped with a 12,000 min⁻¹ spindle (optionally 16,000 min⁻¹) and rapid tool to tool times around 1.3 seconds, it allows simultaneous 5 axis machining, suitable for complex components in EVs, aerospace parts, or defense applications. The CNC D00 controller ensures seamless operation through its intuitive 15″ touchscreen and quick command access.
This model supports automation add-ons such as chip conveyors, side shutters, and tool life monitoring—making it compatible with modern smart factories. The U500xd2 is perfect for Indian manufacturers aiming to enhance productivity while minimizing downtime, and it offers unmatched flexibility in a compact footprint.
| Item | U500Xd2 / U500Xd2 RD ※8 / U500Xd2-5AX / U500Xd2-5AX RD※8 | U500Xd2-100T / U500Xd2-100T RD ※8 /U500Xd2-5AX-100T / U500Xd2-5AX-100T RD※8 | |
|---|---|---|---|
| Travels | X axis (mm) | 500 | |
| Y axis (mm) | 450 | ||
| Z axis (mm) | 380 | ||
| A axis (mm) | -30~120 | ||
| C axis (mm) | 360 | ||
| Distance between table top and spindle nose end (mm) | 115-495 | ||
| Table | Work area size (mm) | 260 | |
| Max. loading capacity (uniform load) (kg) | 100 | ||
| Max. table load inertia (kg-m²) | 1.8 [2.6 ※9] | ||
| Spindle | Spindle speed (min⁻¹) | 12,000min⁻¹ specifications: 1~12,000 16,000min⁻¹ specifications (Optional): 1~16,000 |
12,000min⁻¹ specifications: 1~12,000 |
| Speed during tapping (min⁻¹) | Max. 6,000 min⁻¹ | ||
| Tapered hole | 7/24 tapered No.30 | ||
| BT dual contact spindle (BIG-PLUS) | Optional | ||
| Coolant through spindle (CTS) | Optional | ||
| Feed Rate | Rapid traverse rate (XYZ) (m/min) | 50 x 50 x 56 | |
| Cutting feed rate (mm/min) | X, Y, Z: 1–30,000 ※7 | ||
| Indexing feed rate (A and C) (min⁻¹) | A axis: 50 C axis: 75 (60 ※9) | ||
| ATC Unit | Tool shank type | MAS-BT30 | |
| Pull stud type ※4 | MAS-P30T-2 | ||
| Tool storage capacity (pcs) | 14 / 21 / 28 | 100 ※12 | |
| Max. tool length (mm) | 250 | ||
| Max. tool diameter (mm) | 110 | Turret magazine: 110, Tool stocker: 60 / 110 (No adjacent tool) |
|
| Max. tool weight (kg) ※1 | 3.0 [4.0 ※10] / tool, <TOTAL TOOL WEIGHT: 25 for 14 tools, 35 for 21 or 28 tools> |
Turret magazine: 3.0 [4.0 ※10] / tool, <Total tool weight: 35> Tool stocker: 4.0 / tool, <Total tool weight: 50> |
|
| Tool selection method | Random shortcut method | ||
| Tool Change Time ※5 | Tool To Tool (sec) | 0.6 / 0.7 (14 or 21 tools / 28 tools) | 0.7 ※13 |
| Chip To Chip (sec) | 1.3 / 1.4 (14 or 21 tools / 28 tools) | 1.4 ※13 | |
| Electric Motor | Main spindle motor (10min/continuous) ※2 (kW) | 12,000min⁻¹ specifications: 10.1 / 7.0, 16,000min⁻¹ specifications (optional): 7.4 / 5.1 |
12,000min⁻¹ specifications: 10.1 / 7.0 |
| Axis feed motor (kW) | X, Y axis: 1.0 Z axis: 2.0 A axis: 0.9 C axis: 0.55 | ||
| Power Source | Power supply | AC 200 to 230 V±10%, 3-phase, 50/60Hz±2% | |
| Power capacity (continuous) (kW) | 12,000min⁻¹ specifications: 9.5, 16,000min⁻¹ specifications (optional): 9.5 |
12,000min⁻¹ specifications: 9.5 | |
| Regular air pressure (MPa) | 0.4~0.6 (recommended value 0.5MPa ※6) | ||
| Required flow (L/min) | 52 | ||
| Machine Dimensions | Height (mm) | 2,818 | |
| Required floor space ※11 (mm) | 1,560 × 2,081 | 2,050 × 2,081 | |
| Weight (kg) | 2,650 | 2,800 | |
| Accuracy ※3 | Accuracy of bidirectional axis positioning (ISO230-2:1988) | X, Y, Z axis: 0.006~0.020mm (0.00024~0.00079 inch) A, C axis: 28 sec or less |
|
| (ISO230-2:2014) | |||
| Repeatability of bidirectional axis positioning (ISO230-2:2014) | X, Y, Z axis: Less than 0.004mm (0.00016 inch) A, C axis: 16 sec or less | ||
| Standard accessories | Instruction Manual (DVD 1 set), leveling bolts (5 pcs.), leveling plate (5 pcs.) | ||
