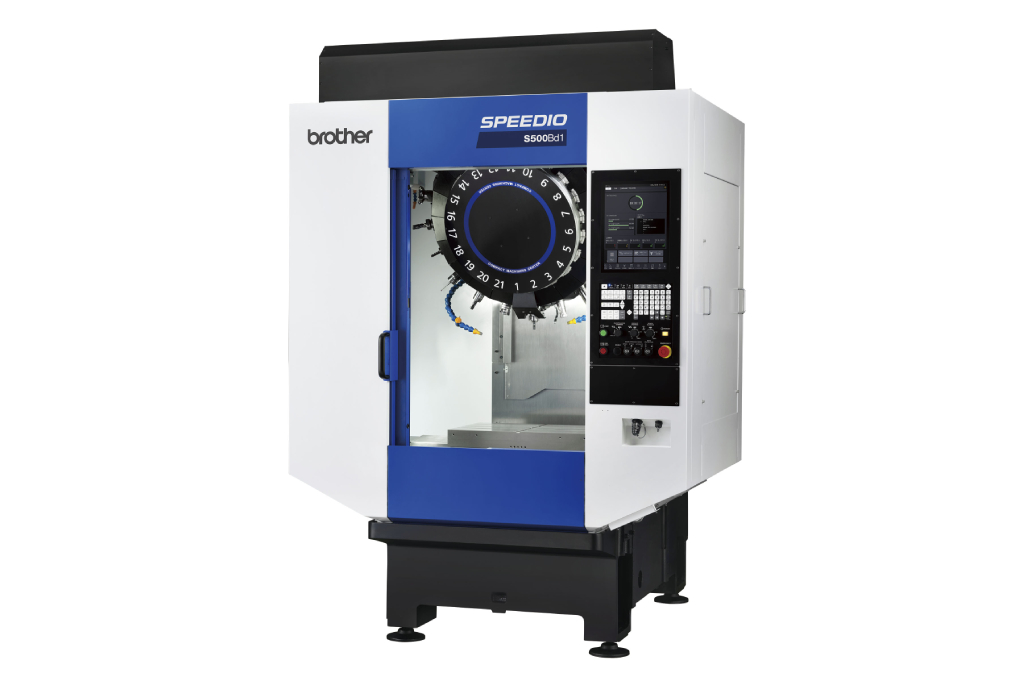

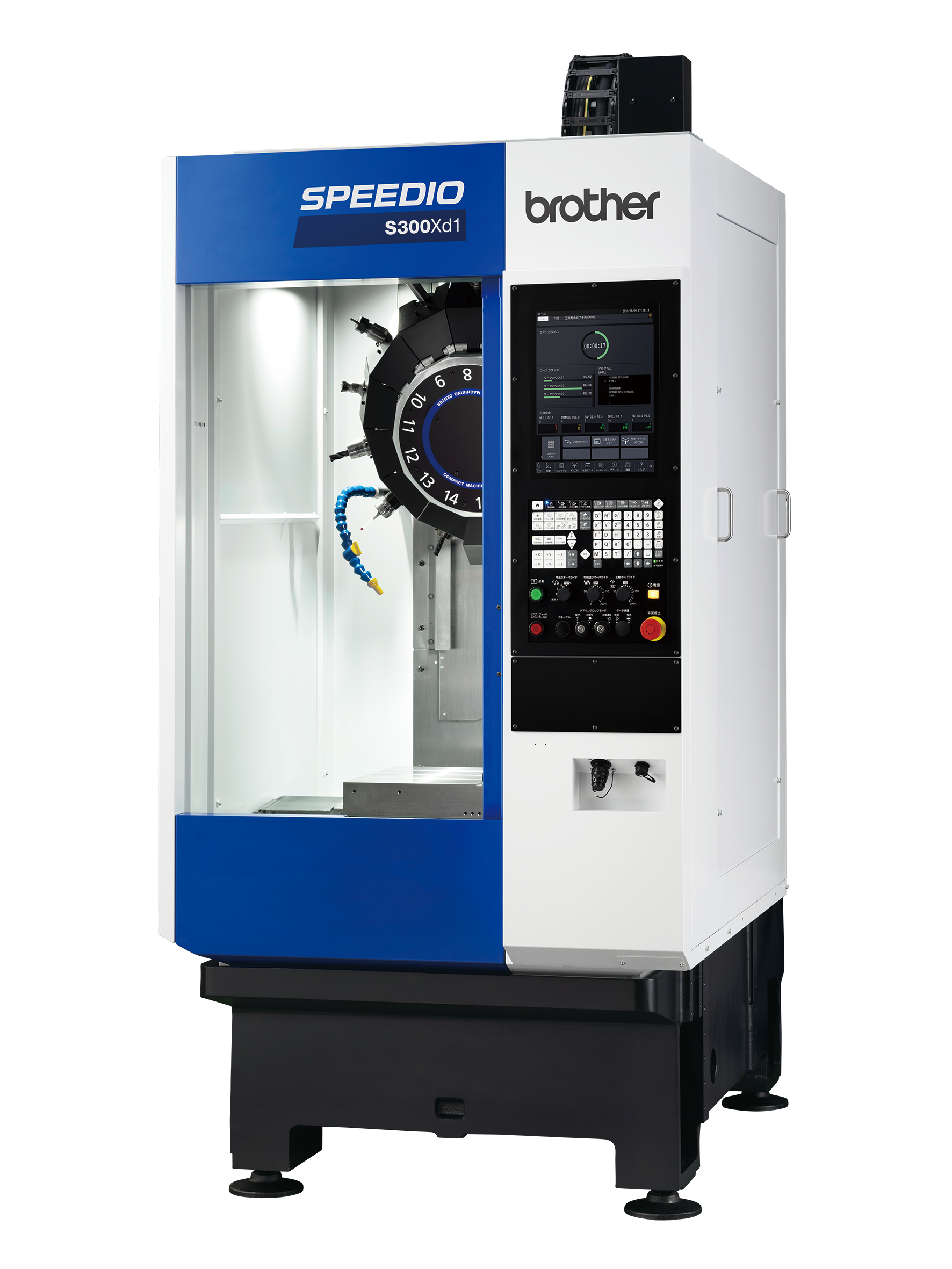

With X/Y/Z travels up to 700/450/380 mm (Z axis optional up spec), these 3 axis vertical machining centers are designed for high performance. The machines feature up to a 28 tool magazine and Brother’s latest CNC D00 control with a responsive 15″ touchscreen—ideal for streamlined production facilities and operators familiar with digital workflows.
Rapid traverse rates of 50/50/56 m/min with tool to tool times of 0.6–0.7 seconds allow fast cycle times. Optional high speed spindles (12,000 to 27,000 min⁻¹) and coolant through spindle (CTS) support drilling and milling in hard or deep hole applications. These machines reduce downtime thanks to Brother’s non stop ATC, simultaneous multi axis positioning, and optimized servo control, making them ideal for high-volume manufacturing in auto components, electronics parts, and valve production.
Robust design, low inertia spindle, and energy saving features (regenerative drives and air purge) make this series ideal in a country like India where power conservation and reliability are crucial. Compact footprint, high rigidity, precision, and speed combine to offer impressive ROI for SMEs, job shops and large-scale manufacturers alike.

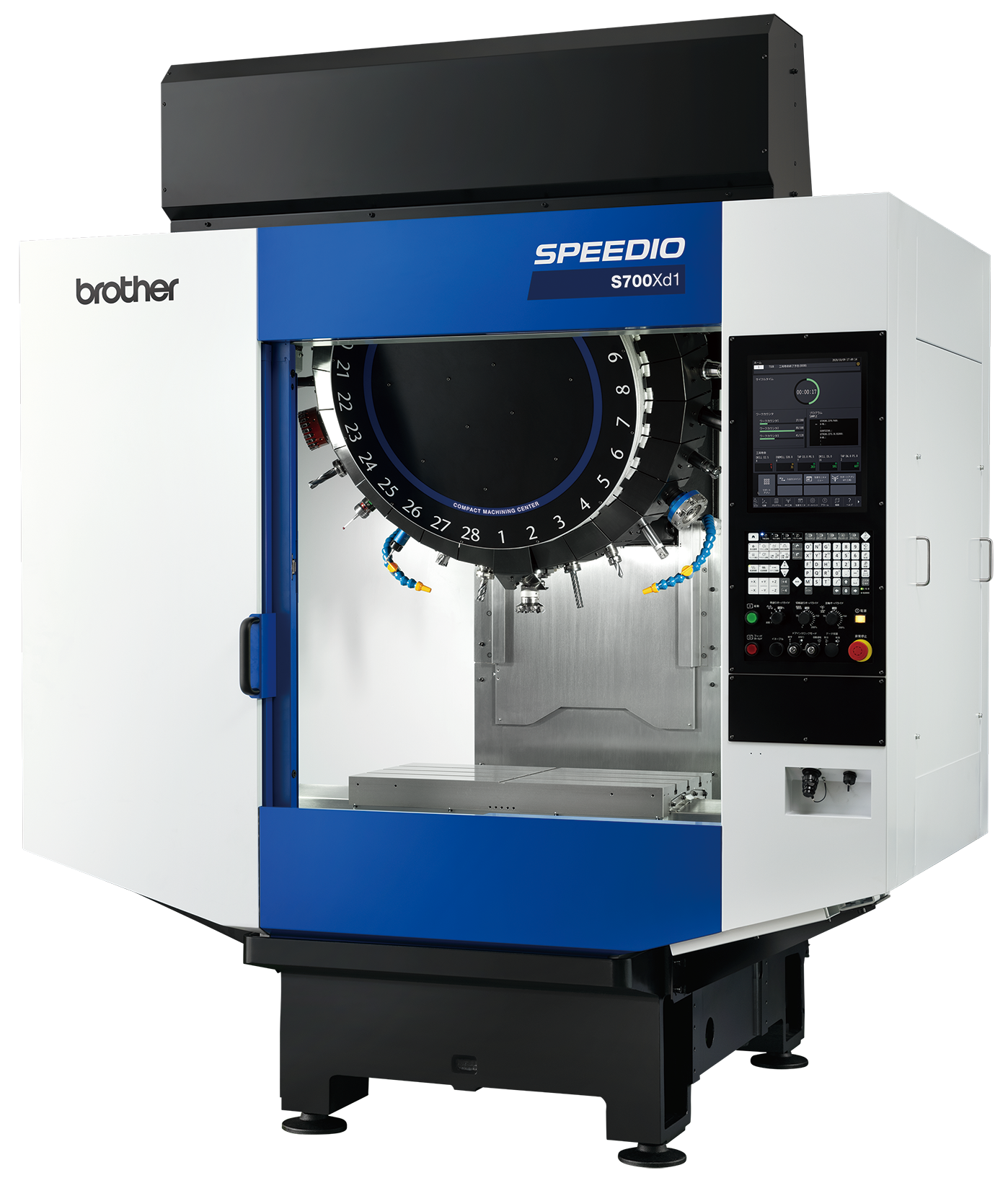

| Item | S500bd1S500bd1 | S700bd1S700bd1 | |
|---|---|---|---|
| CNC Unit | CNC-D00 | ||
| Travels | X Axis (mm) | 500 | 700 |
| Y Axis (mm) | 400 | ||
| Z Axis (mm) | 300 | ||
| Distance table top to spindle nose end (mm) | 180–480 | ||
| Table | Work area size (mm) | 600 × 400 | 800 × 400 |
| Max. loading capacity (uniform load) (kg) | 250 ※6 | ||
| Spindle | Spindle speed (min⁻¹) | 10,000 min⁻¹ (Optional: 16,000) 10,000 min⁻¹ high-torque specifications (optional): 1~10,000 |
|
| Speed during tapping (min⁻¹) | MAX 6,000 | ||
| Tapered hole | 7/24 Tapered No. 30 | ||
| BT dual contact spindle (BIG-PLUS) | Optional | ||
| Coolant through spindle (CTS) | Optional | ||
| Feed Rate | Rapid traverse rate (XYZ area) (m/min) | 50 × 50 × 56 | |
| Cutting feed rate (mm/min) | X, Y, Z: 1–30,000 ※7 | ||
| ATC Unit | Tool Shank Type | MAS-BT30 | |
| Pull Stud Type ※4 | MAS-P30T-2 | ||
| Tool storage capacity (pcs.) | 14 / 21 / 28 tools | ||
| Max. tool length (mm) | 250 | ||
| Max. tool diameter (mm) | 110 | ||
| Max. tool weight ※1 (kg) | 3.0 [4.0※9]/tool, (TOTAL TOOL WEIGHT: 25 for 14 tools, 35 for 21 or 28 tools) | ||
| Tool selection method | Random shortcut method | ||
| Tool Change Time ※5 | Tool-to-tool (sec) | 0.6 s / 0.7 s (14 or 21 tools / 28 tools) | |
| Chip-to-chip (sec) | 1.2 s / 1.3 s (14 or 21 tools / 28 tools) | ||
| Electric Motor | Main spindle motor 10min/continuous) ※2 (kW) | 10,000 min⁻¹ specifications: 10.1/7.0 10,000 min⁻¹ high-torque specifications (optional): 12.8/9.2 |
|
| Axis feed motor (kW) | X, Y, Z axis: 1.0 Z axis: 2.0 | ||
| Power Source | Power Supply | AC 200 V ±10%, 3-phase, 50/60 Hz ±2% | |
| Power capacity (continuous) (kW) | 10,000 min⁻¹ specifications: 9.5 10,000 min⁻¹ high-torque specifications (optional): 10.4 |
||
| Air Supply – Regular air pressure (Mpa) | 0.4~0.6 (recommended value 0.5MPa) ※8 | ||
| Air Supply – Required flow (L/min) | 45 | ||
| Machine Dimensions | Height (mm) | 2,498 | |
| Required floor space ※10 [with control unit door open] (mm) | 1,560 × 2,026 [2,864] | 2,050 × 2,026 [2,864] | |
| Weight (mm) | 2,400 | 2,550 | |
| Accuracy ※3 | Accuracy of bidirectional axis positioning (ISO230-2:1988) mm | 0.006–0.020 | |
| Repeatability of bidirectional axis positioning (ISO230-2:2014) mm | Less than 0.004 | ||
| Front Door | 2 Doors | ||
| Standard Accessories | Instruction manual (DVD), leveling bolts ×4, leveling plate ×4 | ||
