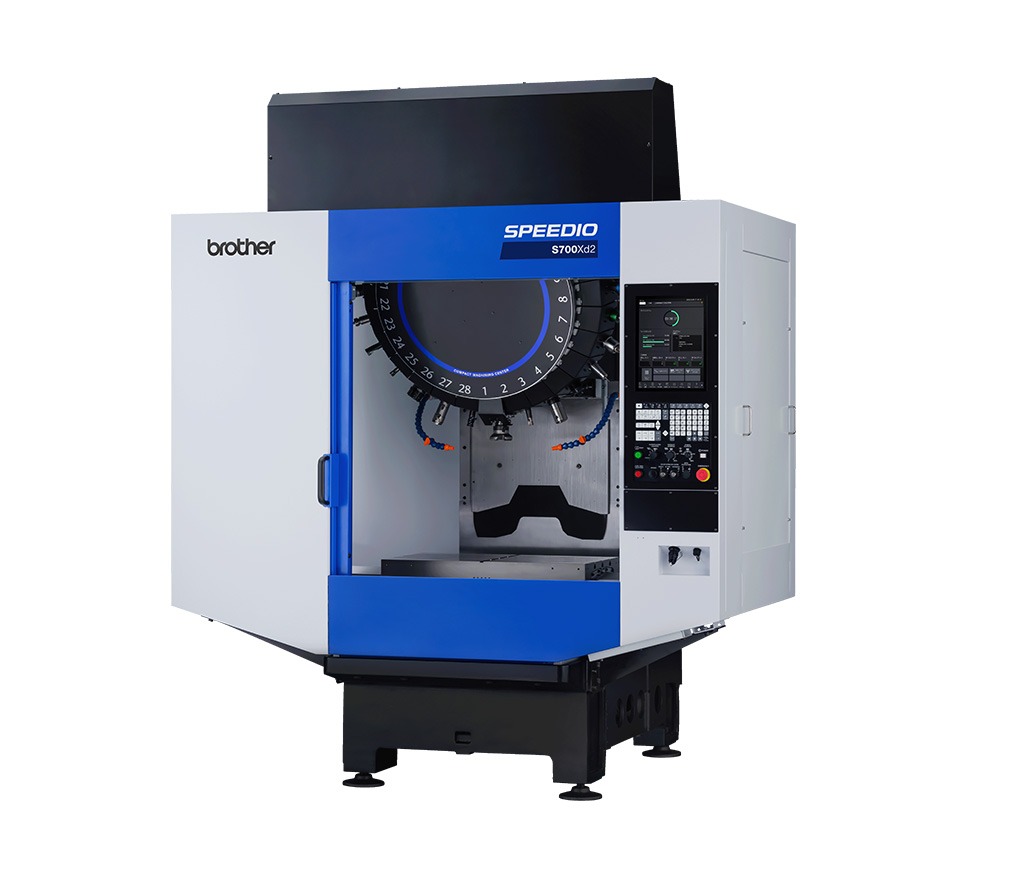

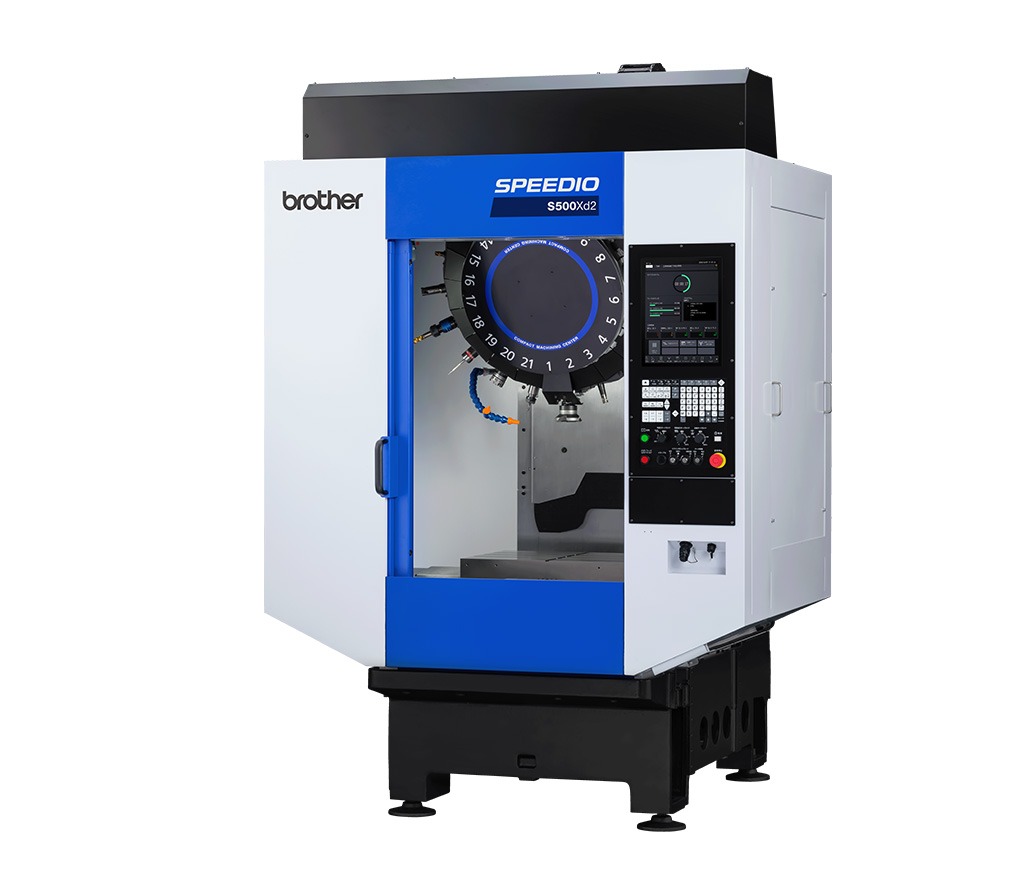

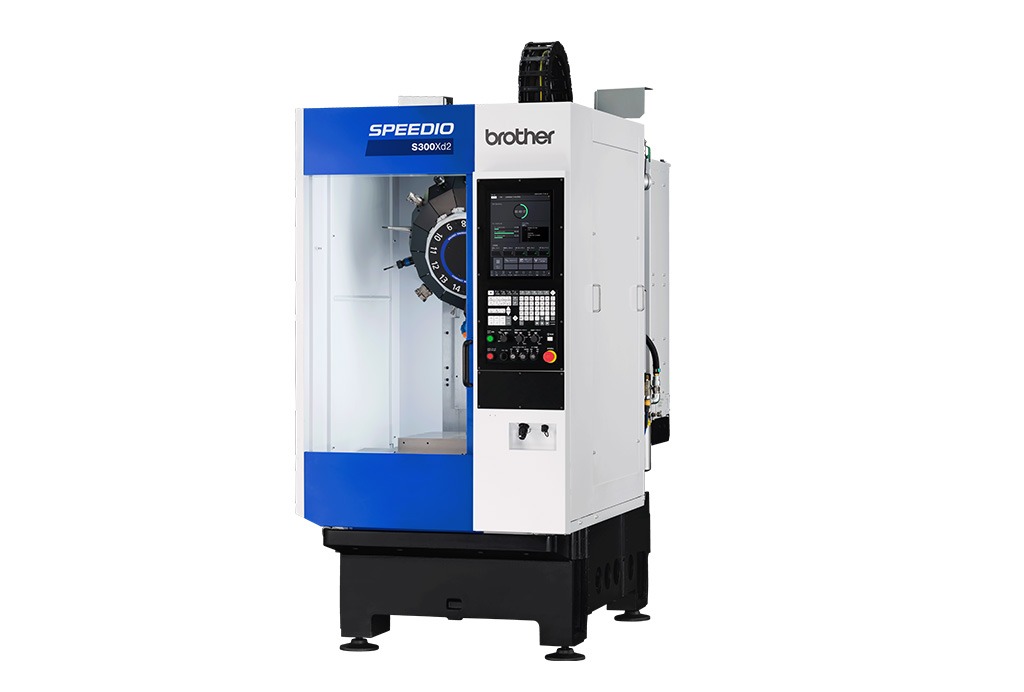

The SPEEDIO S-series (S300Xd2 / S500Xd2 / S700Xd2) is built for India’s high-productivity, high-precision machining environments. These compact vertical machining centers deliver exceptional performance with X/Y/Z travels of 300/450/300 mm (S300Xd2), 500/450/300-380 mm (S500Xd2), and 700/450/300-380 mm (S700Xd2).
Each model is powered by a 12,000 min⁻¹ spindle (with optional 16,000 min⁻¹ or 27,000 min⁻¹ spindles, and a 10,000 min⁻¹ high-torque variant) to accelerate cycle times without sacrificing rigidity.
Tool capacity goes up to 28 tools for fast, compact tool changes, and a maximum tool mass of 4 kg helps with heavy, large-diameter tooling.
Equipped with the CNC-D00 control, these machines offer 5-axis functionality (on the 5AX versions) for advanced simultaneous machining.
The latest control also improves energy efficiency and productivity by optimizing motion control and reducing waste.
For automation and high-mix production, the S-series supports options such as coolant-through-spindle (CTS) and BIG-PLUS (BT dual-contact) spindles for better rigidity and precision.
| Item | S300Xd2 S300Xd2 RD *9 S300Xd2-5AX S300Xd2-5AX RD *9 |
S500Xd2 S500Xd2 RD *9 S500Xd2-5AX S500Xd2-5AX RD *9 |
S700Xd2 S700Xd2 RD *9 S700Xd2-5AX S700Xd2-5AX RD *9 |
||||
|---|---|---|---|---|---|---|---|
| CNC Unit | 《S300/S500/S700Xd2》 CNC-D00 / 《S300/S500/S700Xd2-5AX》 CNC-D00v (DB) | ||||||
| Travels | X Axis (mm) | 300 | 500 | 700 | |||
| Y Axis(mm) | 450 | ||||||
| Z Axis(mm) | 300 | 300 | 380 | 300 | 380 | ||
| Distance table top to spindle nose end(mm) | 180-480 | 180-480 | 150-530 | 180-480 | 150-530 | ||
| Table | Work area size(mm) | 600 × 450 | 800 x 450 | ||||
| Max. loading capacity (uniform load) (kg) | 250(300) ※6 | 250 (400)※6 | |||||
| Spindle | Spindle speed (min⁻¹) | 12,000min-1 specifications: 1~12,000, 16,000min-1 specifications (optional): 1~16,000 10,000min-1 high-torque specifications (optional): 1~10,000, 27,000min-1 specifications (optional): 1~27,000 (27,000min-1 specifications cannot be selected for Z-axis 380 mm specifications models |
|||||
| Speed during tapping (min⁻¹) | MAX 6,000 (27,000min-1 specifications: MAX 8,000) | ||||||
| Tapered hole | 7/24 Tapered No. 30 | ||||||
| BT dual contact spindle (BIG-PLUS) | Optional | ||||||
| Coolant through spindle (CTS) | Optional (CTS cannot be selected for 27,000min-1 specification models) | ||||||
| Feed Rate | Rapid traverse rate (XYZ area) (m/min) | 50 × 50 × 56 | |||||
| Cutting feed rate (mm/min) | X, Y, Z: 1–30,000 ※7 | ||||||
| ATC Unit | Tool Shank Type | MAS-BT30 | |||||
| Pull Stud Type ※4 | MAS-P30T-2 | ||||||
| Tool storage capacity (pcs.) | 14/21 tools | 14 / 21 / 28 tools | |||||
| Max. tool length (mm) | 160 (21 tools) , 250(14 tools) | 250 | |||||
| Max. tool diameter (mm) | 110 | ||||||
| Max. tool weight ※1 (kg) | 3.0 [4.0※10]/tool, (TOTAL TOOL WEIGHT: 25 for 14 tools, 35 for 21or 28 tools) | ||||||
| Tool selection method | Random shortcut method | ||||||
| Tool Change Time ※5 | Tool-to-tool (sec) | 0.6 s / 0.7 s (14 or 21 tools / 28 tools) | |||||
| Chip-to-chip (sec) | Z-axis 300 mm specifications: 1.2 s / 1.3 s (14 or 21 tools / 28 tools), Z-axis 380 mm specifications: 1.3 / 1.4 (14 or 21 tools / 28 tools) | ||||||
| Electric Motor | Main spindle motor 10min/continuous)※2 (kW) | 12,000min-1 specifications: 10.1/7.0, 16,000min-1 specifications (optional): 7.4/5.1 10,000min-1 high-torque specifications (optional): 12.8/9.2, 27,000min-1 specifications (optional): 8.9/6.3 |
|||||
| Axis feed motor (kW) | X, Y, Z axis: 1.0 Z axis: 2.0 | ||||||
| Power Source | Power Supply | AC 200 V ±10%, 3-phase, 50/60 Hz ±2% | |||||
| Power capacity (continuous) (kW) | 12,000min-1 specifications: 9.5, 16,000min-1 specifications (optional): 9.5 10,000min-1 high-torque specifications (optional): 10.4, 27,000min-1 specifications (optional): 9.5 |
||||||
| Air Supply | Regular air pressure (Mpa) | 0.4~0.6 (recommended value 0.5MPa) ※8 | |||||
| Required flow (L/min) | 40 (27,000min-1 specifications: 115) | ||||||
| Machine Dimensions | Height (mm) | Z-axis 300 mm specifications: 2,529 Z-axis 380 mm specifications: 2,568 | |||||
| Required floor space ※11 [with control unit door open] (mm) | 1,080 x 2,161 [2,999] | 1,560 x 2,081 [2,919 ] | 2,050 x 2,081 [2,919] | ||||
| Weight (kg) | 2350 | 2400 | 2550 | ||||
| Accuracy ※3 | Accuracy of bidirectional axis positioning (ISO230-2:1988) mm | 0.006–0.020 | |||||
| Repeatability of bidirectional axis positioning (ISO230-2:2014) mm | Less than 0.004 | ||||||
| Front Door | 2 Doors | ||||||
| Standard Accessories | Instruction manual (DVD), leveling bolts ×4, leveling plate ×4 | ||||||
