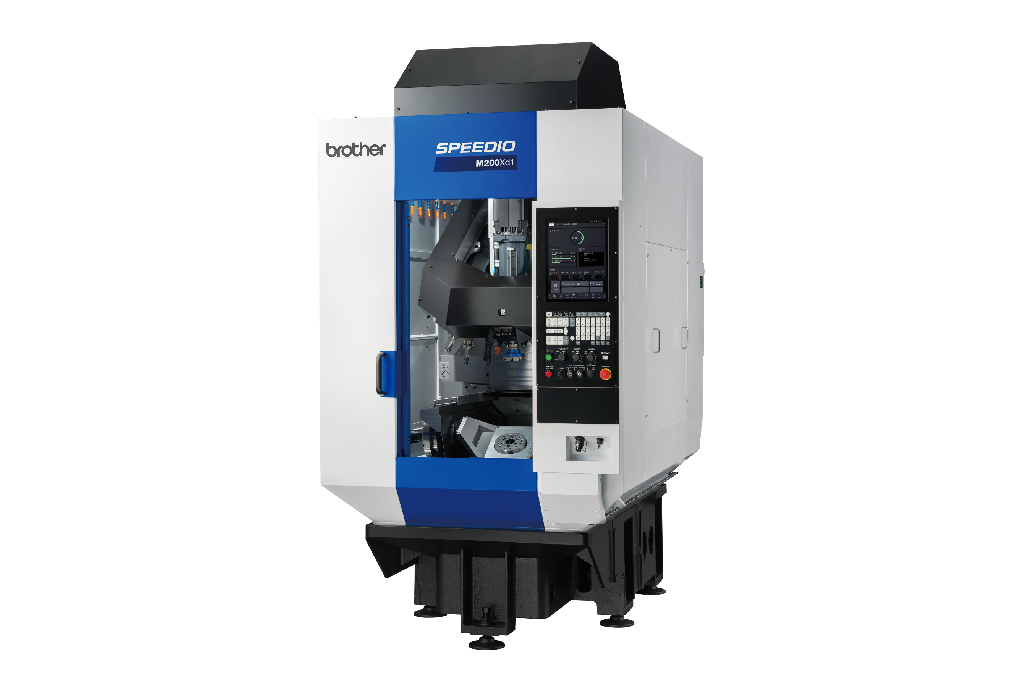

With turning X travel of 200 or 300 mm, vertical travel (Y/Z) of 440/305 mm, and full A (–30° to 120°) and C (360°) rotary axes, these compact multitasking machines enable single chuck turning and 5 axis milling in one fixture.
Equipped with BT 30 spindles (10,000 to 16,000 min⁻¹) and 22–28 tool magazines, the M series ensures quick tool swapping and high productivity—crucial for India’s fast turnaround shops. Rapid axis speeds at 50 m/min and high speed ATC combined with Brother’s CNC D00 controller deliver efficiency gains reminiscent of its S series counterparts.
Ideal for producing complex parts—like motor housings, valve bodies, and impellers—in a single setup, reducing manual handling and cycle times. These machines fit well in Indian manufacturing lines, offering ergonomic maintenance, compact installations, and low operating costs. They offer excellent value to shops transitioning to 5 axis machining without compromising speed or flexibility.
| Item | M200Xd1 / M200Xd1 RD ※8 | M200Xd1-5AX / M200Xd1-5AX RD ※8 | M300Xd1 / M300Xd1 RD ※8 | M300Xd1-5AX / M300Xd1-5AX RD ※8 | |
|---|---|---|---|---|---|
| CNC Unit | CNC-D00 | CNC-D00V (DB) | CNC-D00 | CNC-D00V (DB) | |
| Travels | X axis (mm) | 200 | 300 | ||
| Y axis (mm) | 440 | 440 | |||
| Z axis (mm) | 305 | 380 | |||
| A axis (mm) | -30 to 120 | -30 to 120 | |||
| C axis (mm) | 360 | 360 | |||
| Distance between table top and spindle nose end (mm) | 150–455 | 150–530 | |||
| Table | Work area size (mm) | φ140 | φ170 | ||
| Shape of table top | In compliance with ISO702-4 (JISB6109-2) | In compliance with ISO702-4 (JISB6109-2) | |||
| Max. loading capacity (kg) | Table side 40 / Table side 19 ※9 | Table side 75 / Table side 19 ※9 | |||
| Max. table load inertia (kg-m²) | Table side 0.8 / 0.04 | ||||
| Spindle | Spindle speed (min⁻¹) | 10,000 spec 1–10,000 / 16,000 (optional) | |||
| Speed during tapping (min⁻¹) | MAX 6,000 | ||||
| Tapered hole | 7/24 tapered No.30 | ||||
| BT dual contact spindle (BIG-PLUS) | Optional | ||||
| Coolant through spindle (CTS) | Optional | ||||
| Turning spindle | Max. spindle speed (min⁻¹) | 2,000 | 1,500 | ||
| Feed rate | Rapid traverse (XYZ) (m/min) | 50 × 50 × 50 | |||
| Cutting feed rate (mm/min): | X,Y,Z axis 1–30,000 ※7 | ||||
| Indexing feed rate (A and C) (min⁻¹) | A axis: 60 / C axis: 200 | A axis: 50 / C axis: 200 | |||
| ATC Unit | Tool shank type | MAS-BT30 | |||
| Pull stud type ※4 | MAS-P30T-2 | ||||
| Tool storage capacity (pcs) | 22 / 28 ※10 | ||||
| Max. tool length (mm) | 250 (9.8) ※12 | ||||
| Max. tool diameter (mm) | 80 | ||||
| Max. tool weight (kg) | 3 (total tool weight: 40) | ||||
| Tool selection method | Random shortcut | ||||
| Tool change time ※5 | Tool to Tool (sec) | 0.8 | 0.8 | ||
| Chip to Chip (sec) | 1.4 | 1.5 | |||
| Electric Motor | Main spindle motor (10min/cont.) ※2 (kW) | 10,000 spec 10.1/7.0, 16,000 spec (opt.) 7.4/5.1 | |||
| Axis feed motor (kW) | X,Y:1.0 Z:1.8 A axis:0.8 | X,Y:1.0 Z:1.8 A axis:1.35 | |||
| Turning spindle motor (kW) | 4.2 | 4.6 | |||
| Power Source | Power supply | AC 200–230V ±10%, 3-phase 50/60Hz ±2% | |||
| Power capacity (kW) | 10,000 spec 9.5 / 16,000 (opt) 9.5 | ||||
| Air supply – Regular air pressure (MPa) | Required air pressure: 0.4–0.6 (recommended value 0.5MPa) ※6 | ||||
| Air supply – Required flow (L/min) | Required flow: 175 | ||||
| Machine Dimensions | Height (mm) | 2,612 | 2,733 | ||
| Floor space (mm) | 1,280 × 2,667 | 1,520 × 2,667 | |||
| Weight (kg) | 2,700 [3,100 with BV7-870ad] | 2,850 | |||
| Accuracy ※3 | Accuracy of bidirectional axis positioning (ISO230-2:1988) | X, Y, Z axis: 0.006–0.020 mm | |||
| (ISO230-2:2014) | A, C axis: 28 sec or less | ||||
| Repeatability of bidirectional axis positioning (ISO230-2:2014) | X, Y, Z axis: less than 0.004 mm / A, C axis: 16 sec or less | ||||
| Standard Accessories | Instruction Manual (DVD 1 set), leveling bolts (5 pcs.), leveling plate (5 pcs.) | ||||
