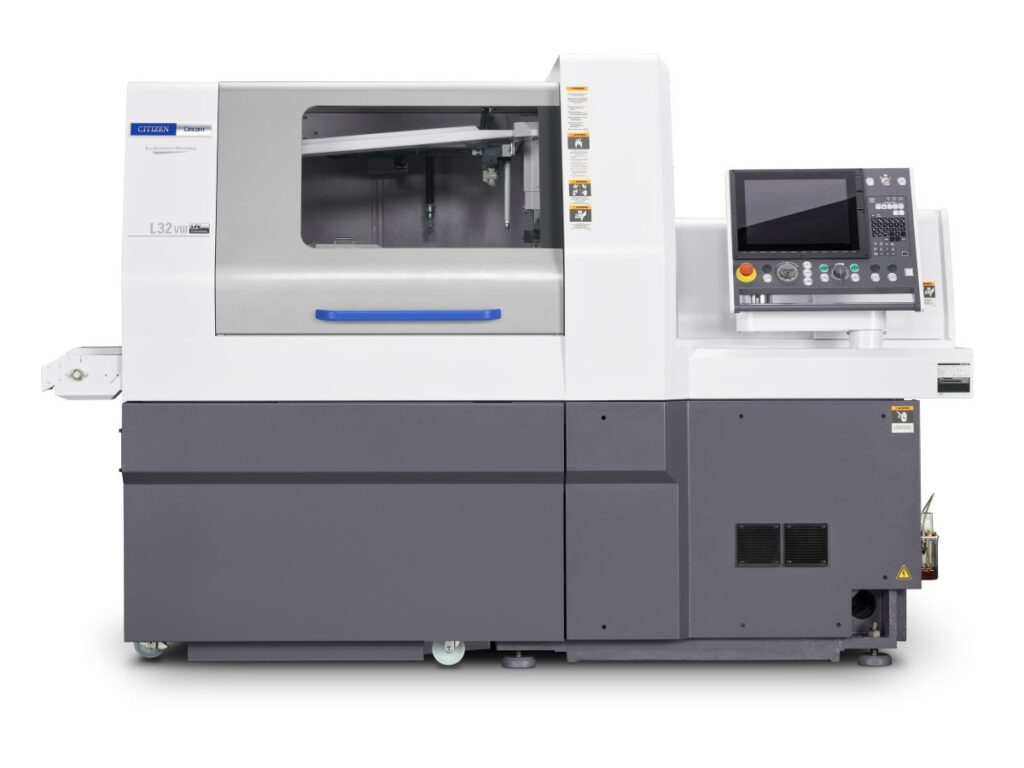

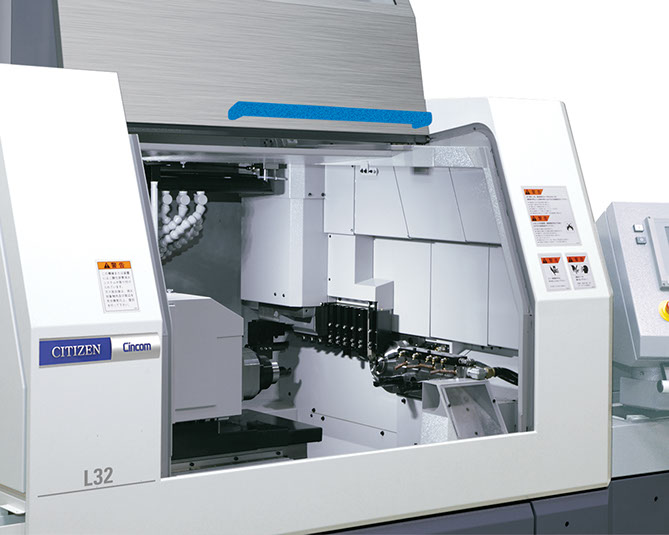

The Cincom L32 series handles Ø32 mm bars (with options for Ø35 and Ø38 mm), machining lengths up to 320 mm in guide-bushing mode. It offers 7 to 9 cutting axes depending on the version and supports up to 40 tools. Both main and back spindles run at 8,000 rpm. Gang and back rotary tools reach up to 6,000 rpm.

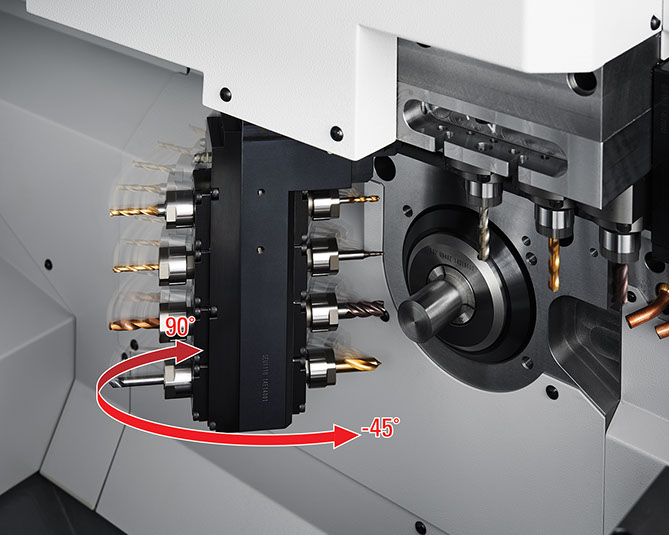

It supports front drilling of up to Ø12 mm and tapping up to M12. Feed rates are 32 m/min on most axes, and 24 m/min on the Y2 axis. Power consumption is around 13.2 kVA with average loads at 6.9 kVA. With a machine height of ~1,050 mm and weight near 2,900 kg, the L32’s modular design includes B-axis tooling and LFV chip control. Its size and throughput make it suitable for medium parts in India’s auto, valve, and hydraulic industries. Full installation and support services are available from Marubeni-Citizen’s Bangalore hub.
| Item | L32 VIII | L32 IX | L32 X | L32 XII | |
|---|---|---|---|---|---|
| Maximum machining diameter | 32mm Dia. | ||||
| Maximum machining length | GB machine | 320mm/chuck | |||
| GBL machine | Workpiece diameter × 2.5 / chuck | ||||
| Maximum drilling diameter for main spindle | 12mm Dia. | ||||
| Maximum tapping diameter for main spindle (tap, die) | M12 (Cut tap) | ||||
| Spindle through-hole diameter | 39mm Dia. | ||||
| Spindle speed | Max. 8,000 min-1 | ||||
| Maximum chuck diameter of back spindle | 32mm Dia. | ||||
| Maximum drilling diameter in back machining process | 10mm Dia. | ||||
| Maximum tapping diameter in back machining process | M10 (Cut tap) | ||||
| Back spindle speed | Max. 8,000 min-1 | ||||
| Maximum drilling diameter for gang rotary tool | 8mm Dia. | ||||
| Maximum tapping diameter for gang rotary tool | M6 (Cut tap) | ||||
| Gang rotary tool spindle speed | Max. 6,000 min-1 | ||||
| Maximum drilling diameter for rotary tool of the opposed tool post Note) Optional feature to all types | 8mm Dia. | ||||
| Maximum tapping diameter for rotary tool of the opposed tool post Note) Optional feature to all types | M6 (Cut tap) | ||||
| Rotary tool spindle speed of the opposed tool post Note) Optional feature to all types | Max. 6,000 min-1 | ||||
| Maximum drilling diameter for back tool post rotary tool | OP | 8mm Dia. | |||
| Maximum tapping diameter for back tool post rotary tool | OP | M6 (Cut tap) | |||
| Rotary tool spindle speed of back tool post | OP | Max. 6,000 min-1 | |||
| Number of tools to be mounted | Max. 30 | Max. 36 | Max. 44 | Max. 40 | |
| Tool size | Turning tool | 16mm Sq. | |||
| Rapid feed rate | X1 axis | 32m/min | |||
| X2 axis | 32m/min | ||||
| Y1 axis | 32m/min | ||||
| Y2 axis | – | 24m/min | |||
| Z1 axis | 32m/min | ||||
| Z2 axis | 32m/min | ||||
| Motors | For spindle drive | 3.7 / 7.5 kW | |||
| For tool spindle drive (gang rotary tool post) | 1.0 kW | ||||
| For back spindle drive | 2.2 / 3.7 kW | ||||
| For spindle drive of opposed tool post | 1.0 kW (Note) Optional feature to all types | ||||
| For spindle drive of back tool post | OP | 1.0 kW | |||
| For cutting coolant oil | 0.25 kW | ||||
| Rated power consumption | 13.2 kVA | ||||
| Load operation average power | 6.9 kVA | ||||
| Center height | 1,050 mm | ||||
| Weight | 2,900 kg | ||||
| ATC device | L32XII ATC |
|---|---|
| Max. ATC tooling rotations | 12,000min-1 |
| Motor output | 2.2kW |
| Tool holder type | JBS-15T |
| No. of B-axis tools | 13 |
| Number of tools mountable on main unit | Max.34 |
| Tool changing time (chip to chip) | 4.0 sec |
| Maximum outer diameter of tools | 30mm Dia. |
| Maximum grip diameter | 10mm Dia. (ER16) |
