Multi-Axis Efficiency for Modern Manufacturers
Designed for flexibility, it supports bar diameters of up to 51 mm or 65 mm, depending on the variant—ideal for Indian manufacturers serving automotive, aerospace, and valve/hydraulic sectors.
This machine features two spindles, a Y-axis turret with 12 stations, and live tooling for full turning and milling in one setup. The main and sub spindles can work in tandem, enabling complete front-and-back machining without manual intervention, drastically cutting cycle time.
What makes the BNX series special is its space-saving, high-speed performance combined with advanced tooling and chip control features. The Y-axis (±35 mm), powerful milling drive, and compact footprint make it a great fit for Indian companies upgrading from single-turret machines to more capable, multitasking equipment.
With LFV chip-breaking technology available as an option, Indian shops working with aluminum, stainless steel, or high-tensile materials can enjoy tangle-free machining and longer tool life—critical for consistent production.

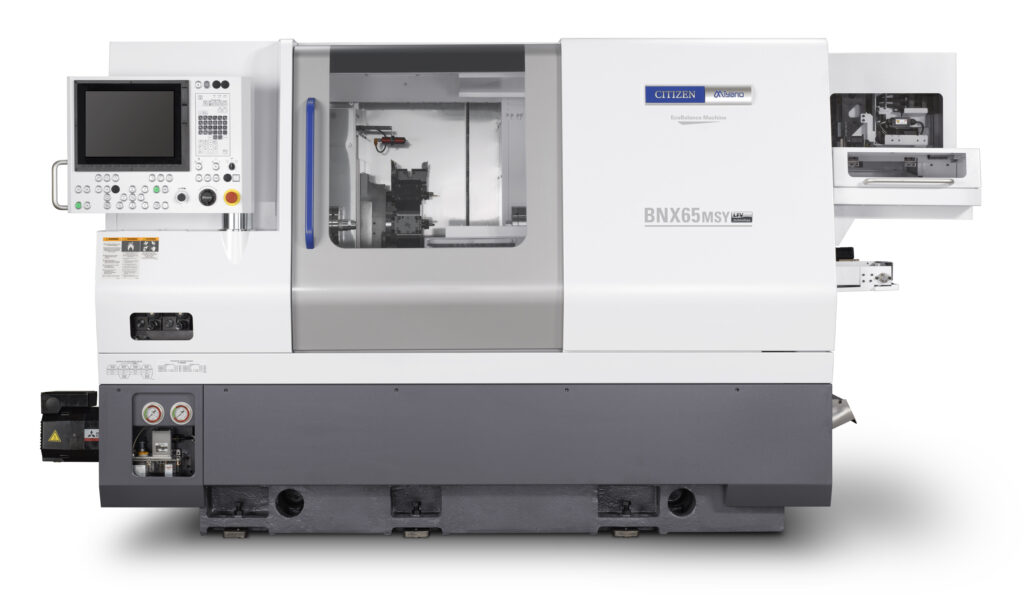

The BNX51/65MSY balances advanced capability with practical usability, offering high ROI for Indian manufacturers who want to step into the next level of smart, multi-axis machining.
| Items | BNX-51MSY |
|---|---|
| Machining Capacity: Maximum machining length | 150 mm |
| Machining Capacity: Diameter of standard cutting (Spindle No. 1) | 51 mm Dia. |
| Machining Capacity: Diameter of standard cutting (Spindle No. 2) | 51 mm Dia. |
| Chuck size: Spindle No. 1 | 6 inch |
| Chuck size: Spindle No. 1 | 5 inch |
| Spindle: Number of spindle | 2 |
| Spindle: Spindle speed range (Spindle No. 1) | 5,000 min-1 |
| Spindle: Spindle speed range (Spindle No. 2) | 5,000 min-1 |
| Spindle: Inner diameter of draw tube (Spindle No. 1) | 52 mm Dia. |
| Spindle: Inner diameter of draw tube (Spindle No. 2) | 43 mm Dia. |
| Spindle: Collet chuck (Spindle No. 1) | H-S22, (DIN177E – option) |
| Spindle: Collet chuck (Spindle No. 2) | H-S22, (DIN177E – option) |
| Spindle: Power chuck (Spindle No. 1) | 6″ thru-hole chuck |
| Spindle: Power chuck (Spindle No. 2) | 5″ thru-hole chuck |
| Turret: Number of turret | 1 |
| Turret: Type of turret (Turret No. 1) | 12 station turret |
| Turret: Shank height of square turning tool | 3/4″ Sq. |
| Turret: Diameter of drill shank | 1″ Dia. |
| Revolving tools: Number of revolving tool (Turret No. 1) | Max. 12 |
| Revolving tools: Type of revolving tool (Turret No. 1) | Single clutch |
| Revolving tools: Tool spindle speed range (Turret No. 1) | 6,000 min-1 |
| Revolving tools: Machining capacity Drill (Turret No. 1) | Max. 13 mm Dia. |
| Revolving tools: Machining capacity Tap (Turret No. 1) | Max. M12×1.75 (S45C-D) |
| Slide stroke: Turret slide stroke (X1 axis) | 165 mm |
| Slide stroke: Turret slide stroke (Z1 axis) | 300 mm |
| Slide stroke: Turret slide stroke (Y1 axis) | 80 (±40) mm |
| Slide stroke: Spindle slide stroke (X2 axis) | 86 mm |
| Slide stroke: Spindle slide stroke (Z2 axis) | 553 mm |
| Feed rate: Rapid feed rate (X1) | 20 m/min |
| Feed rate: Rapid feed rate (Z1) | 20 m/min |
| Feed rate: Rapid feed rate (Y1) | 12 m/min |
| Feed rate: Rapid feed rate (X2) | 20 m/min |
| Feed rate: Rapid feed rate (Z2) | 20 m/min |
| Motors: Spindle drive (Spindle No. 1 Cs) | 15/11 kw (15 min/cont.) |
| Motors: Spindle drive (Spindle No. 2 Cs) | 7.5/5.5 kw (15 min/cont.) |
| Motors: Revolving tool drive (Turret No. 1) | 4.0 kw |
| Motors: Slide | 1.5 kw (Z1), 1.2 kw (X1, Y, X2, Z2) |
| Motors: Hydraulic oil motor | 1.36 kw |
| Motors: Lubricating oil motor | 0.004 kw |
| Motors: Coolant pump | 0.25 kw×1, 0.18 kw×1 |
| Motors: Turret index motor | 1.0 kw |
| Power supply: Voltage | AC 200/ 220±10% 50/ 60 Hz±1% |
| Power supply: Capacity | 33 KVA |
| Power supply: Air supply | 0.5 MPa |
| Power supply: Fuse | 100 A |
| Tank capacity: Hydraulic oil tank capacity | 2.6 gal |
| Tank capacity: Lubricating oil tank capacity | 1 gal |
| Tank capacity: Coolant tank capacity | 79 gal |
| Machine height | 1,700 mm |
| Floor space | 3,907 × 1,540 mm (w/chip conveyor) |
| Machine weight | 11,240 lb |
