Not your basic single turret, twin spindle machine

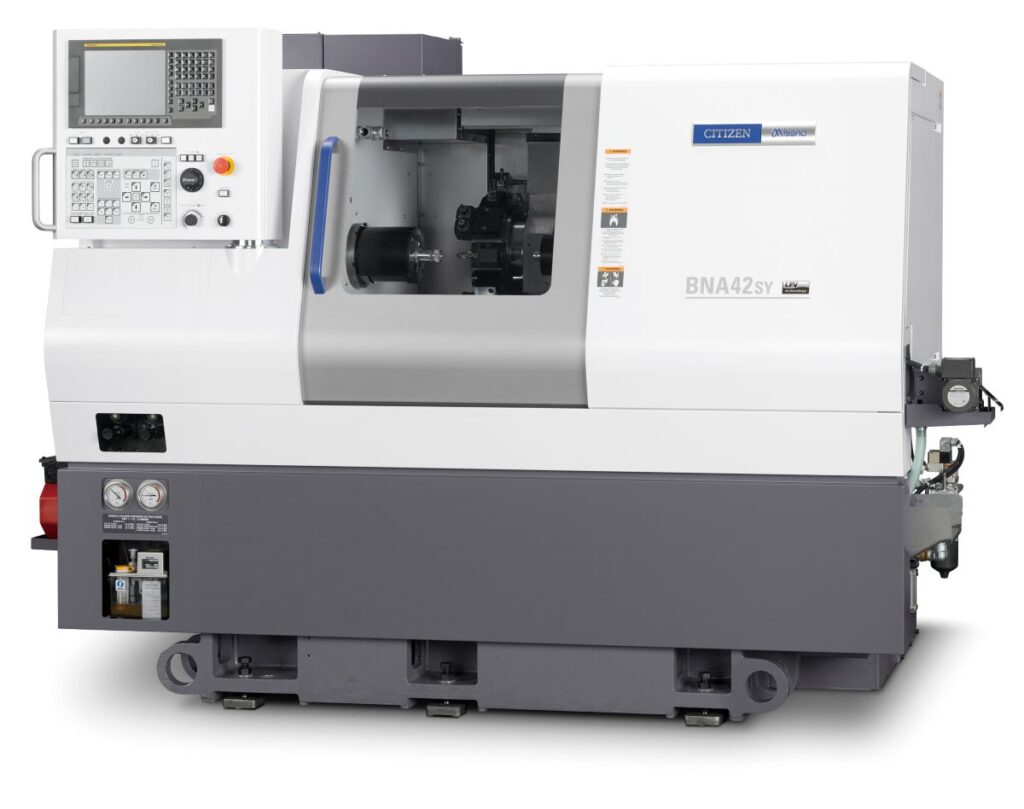

The Miyano BNA42SY is a high-performance fixed-head CNC lathe designed for precision machining of bar materials up to 42 mm. Built with a strong cast-iron base and hand-scraped slideways, it ensures long-term rigidity and stability—especially critical in Indian shop-floor conditions where machines must handle both light and heavy-duty applications reliably.

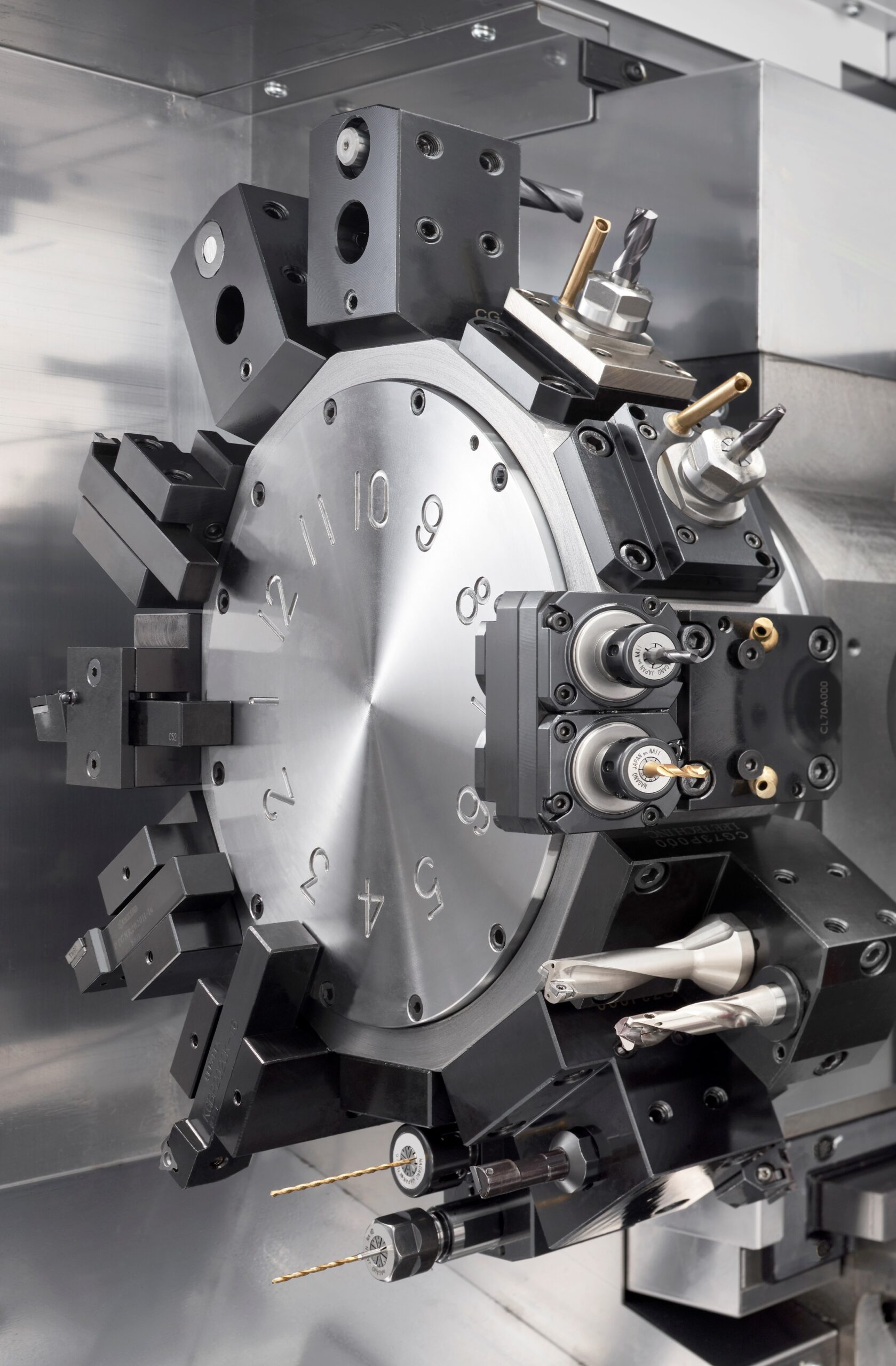

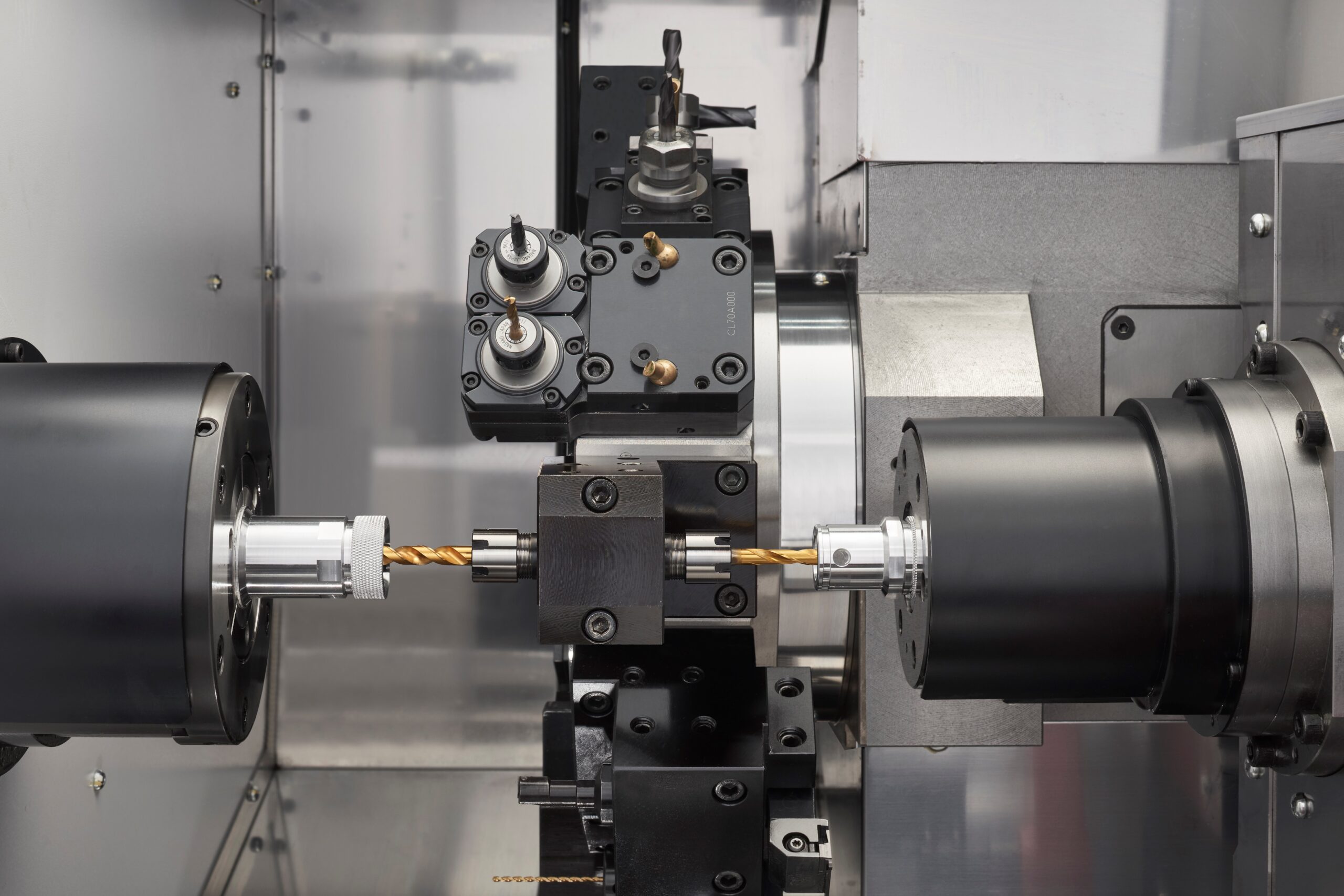

Equipped with a main spindle and sub spindle, along with a 12-station turret with Y-axis, this machine enables simultaneous machining on both ends of the component, reducing cycle times significantly. Whether you are machining hydraulic parts, precision automotive components, or medical devices, the BNA42SY offers superior dimensional accuracy and surface finish.
What sets it apart is LFV (Low-Frequency Vibration) chip-breaking technology—an ideal solution for Indian companies often machining stainless steel, alloy steels, or aluminum. This technology helps avoid tangled swarf and extends tool life, ensuring smoother operations with fewer interruptions.
With compact dimensions (just over 2.3 meters wide), low power consumption (~12 kVA), and compatibility with bar feeders and robots, it’s an ideal solution for SMEs and large-scale factories alike looking to upgrade their production without compromising on quality or floor space.
| Item | BNA-42SY | |
|---|---|---|
| Max. machining length | 100mm | |
| Distance between spindle end faces | 540.5mm Dia. | |
| SP2 | 34mm Dia. | |
| Turret slide travel distance | X axis | 140mm |
| Z axis | 285mm | |
| Y axis | 70 (±35)mm | |
| Back spindle slide travel distance | B (Z2) axis | 360mm |
| Number of spindles | 2 | |
| Spindle speed | SP1 | 60 – 6,000min⁻¹ |
| SP2 | 50 – 5,000min⁻¹ | |
| Collet chuck size | SP1 | 5″ |
| SP2 | 4″ | |
| Number of tool posts | 1 | |
| Type of tool post | 12 ST. | |
| Dimensions of tools used | 20mm | |
| Dimensions of tool post holes | 25mm Dia. | |
| Number of installed rotary tools | Max.12 | |
| Rotating speed of rotary tools | 50 – 5,000min⁻¹ | |
| Rapid feed rate | X axis | 20m/min |
| Z axis | 20m/min | |
| Y axis | 12m/min | |
| B (Z2) axis | 20m/min | |
| Spindle motor | SP1 | 11/7.5/5.5kW (15%/15min/cont.) |
| SP2 | 5.5/3.7kW (15min/cont.) | |
| Rotary tools motor | 2.8/1.0kW | |
| Rated power consumption | 26kVA | |
| Machine height | 1,745mm | |
| Required floor surface area | W2,350 × D1,433mm | |
| Machine weight | 3,880kg | |
